WAC Lighting - Patriot 3" New Construction Frame-on Kit - Lights Canada

Description

Minimum profile downlight with driver and electrical connection box attached for easy remodel or new construction installation. on-board 5-CCT selectable switch allows you to toggle between different color temperatures to find the perfect setting for your space. Change between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch. The color temperature selectable switch can be accessed during, before, and after installation - it is safely concealed inside the electrical box of the fixture.

Construction: Die-cast aluminum with frosted TIR lens. Available in Round or Square trim with adjustable or straght downlight options. 45 degree flood beam spread lens can be removed to convert into a 25 degree narrow beam spread.

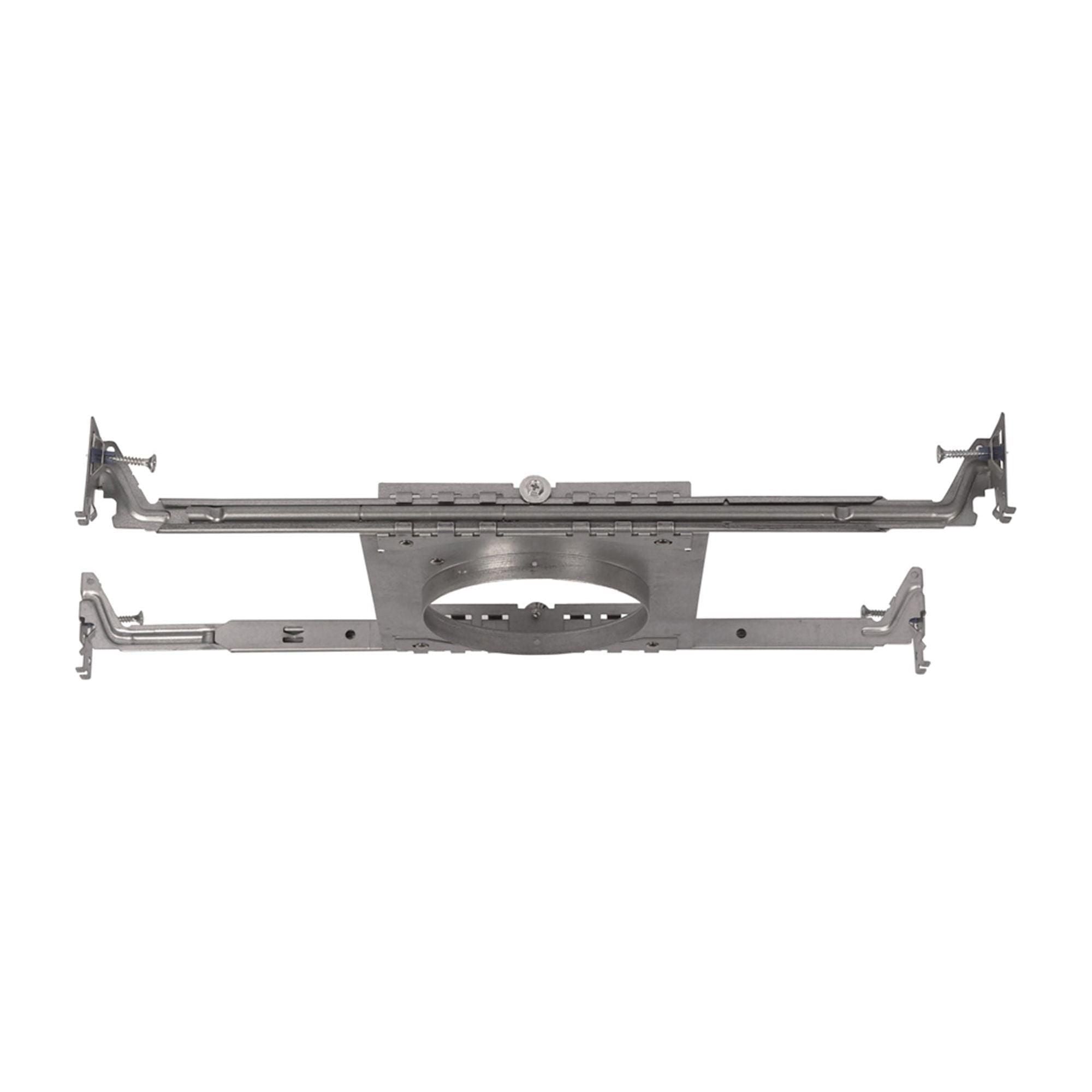

Optional frame-in kit sold separately (R3H-FRAME) for new construction applications when pre-framing is required. Patriot can be installed in remodel and new contruction applications.
Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V. Electrical wiring box includes 24in of wire with twist-lock connector to detach from light engine for ease of service.
Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
High Powered LED's up to 1080 Lumens for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.

Shipping & Returns

This item ships from the US. Lights Canada covers all brokerage, duties and customs fees on items imported from outside of Canada. Looking for a specific delivery timeline? We encourage you to reach out prior to placing your order. Please note all items have different lead times. Please call or contact us if you have any queries about this product.

Product Specifications

Product Details

Product Type:	Recessed Trims
Certification:	ETL, cETL, CSA CAN, Title 24, Energy Star
Finish:	Gray
Family:	Patriot
Style:	Utilitarian
Energy Star:	Yes
ADA:	Yes
Body Material:	Aluminum
Location Rating:	Wet
