Description

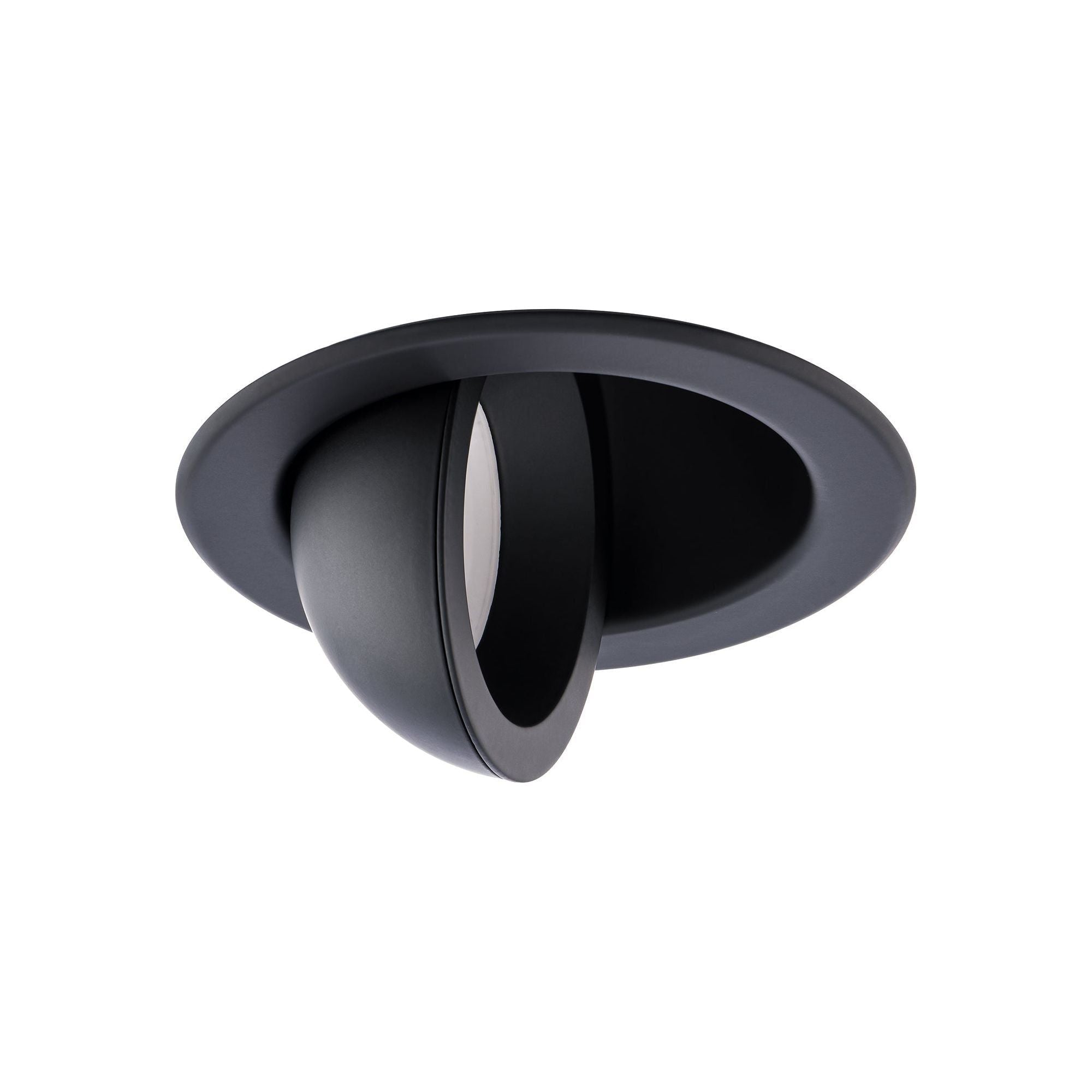

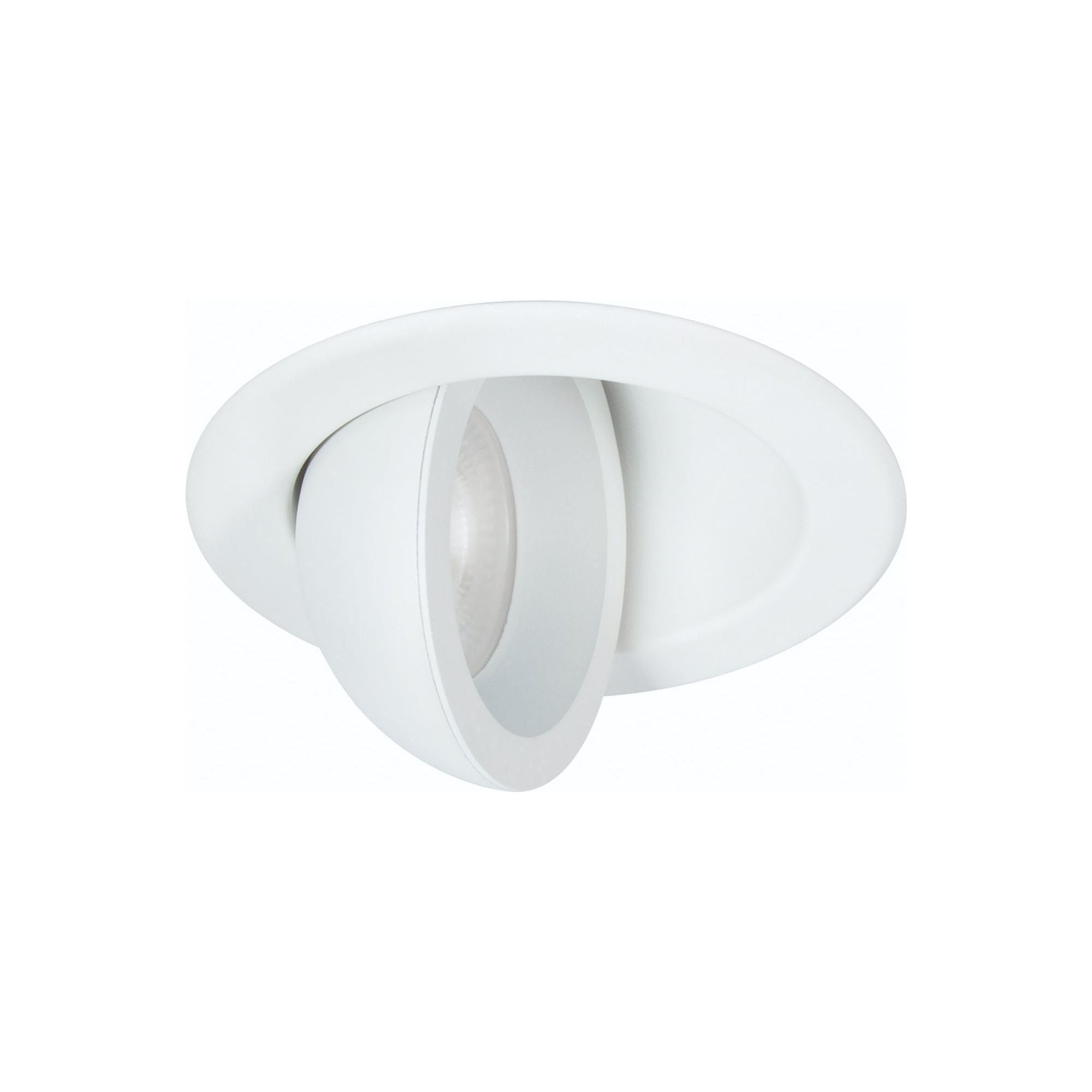

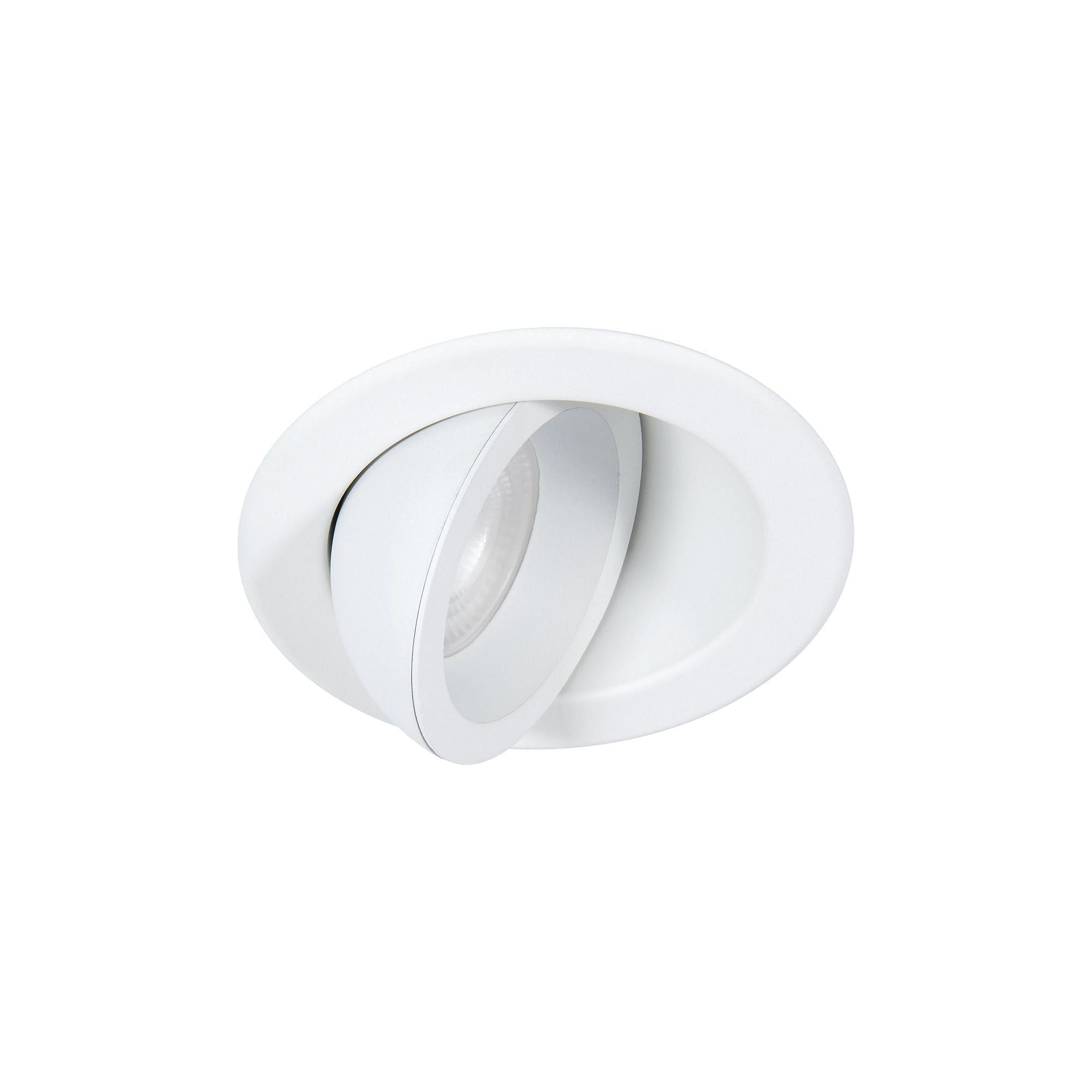

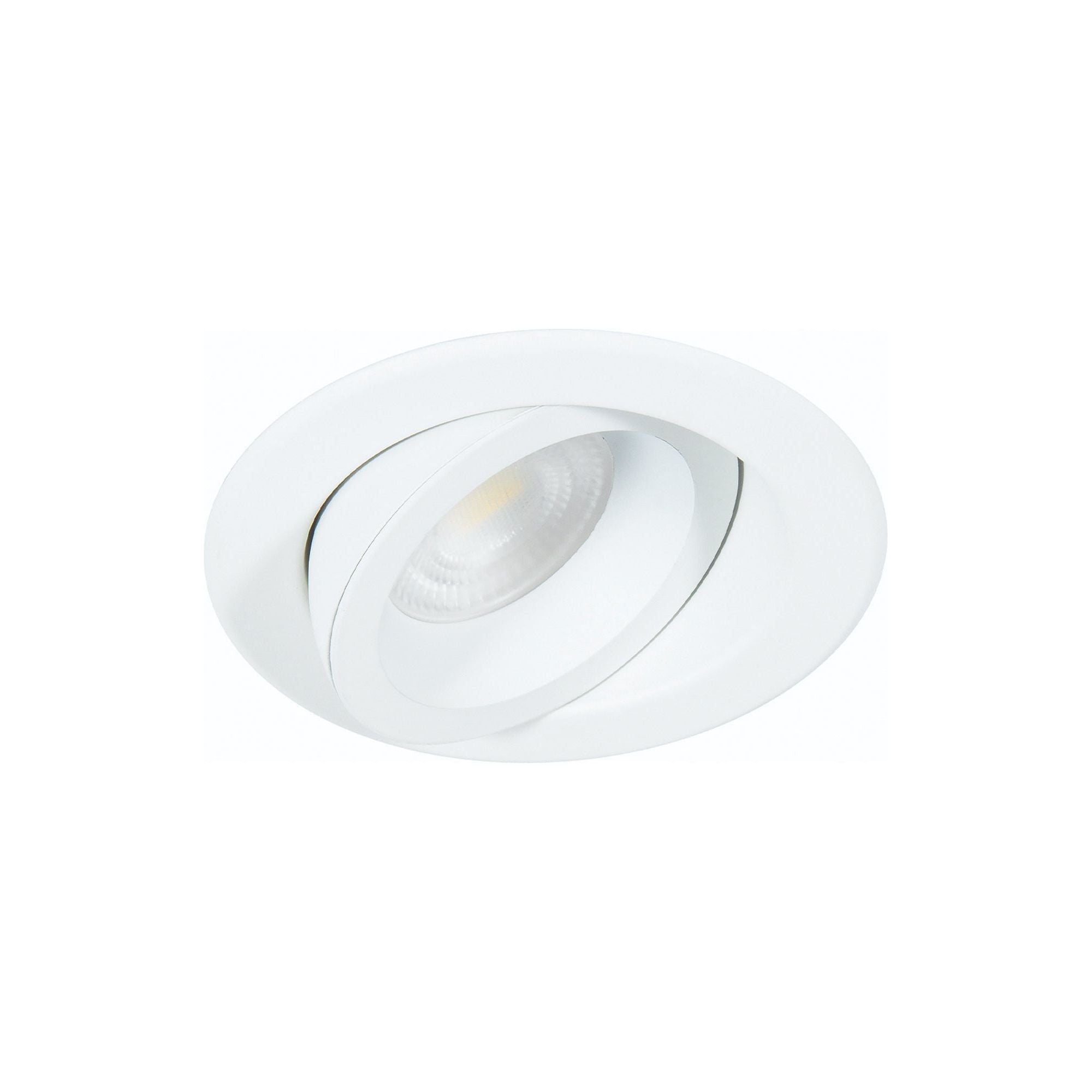

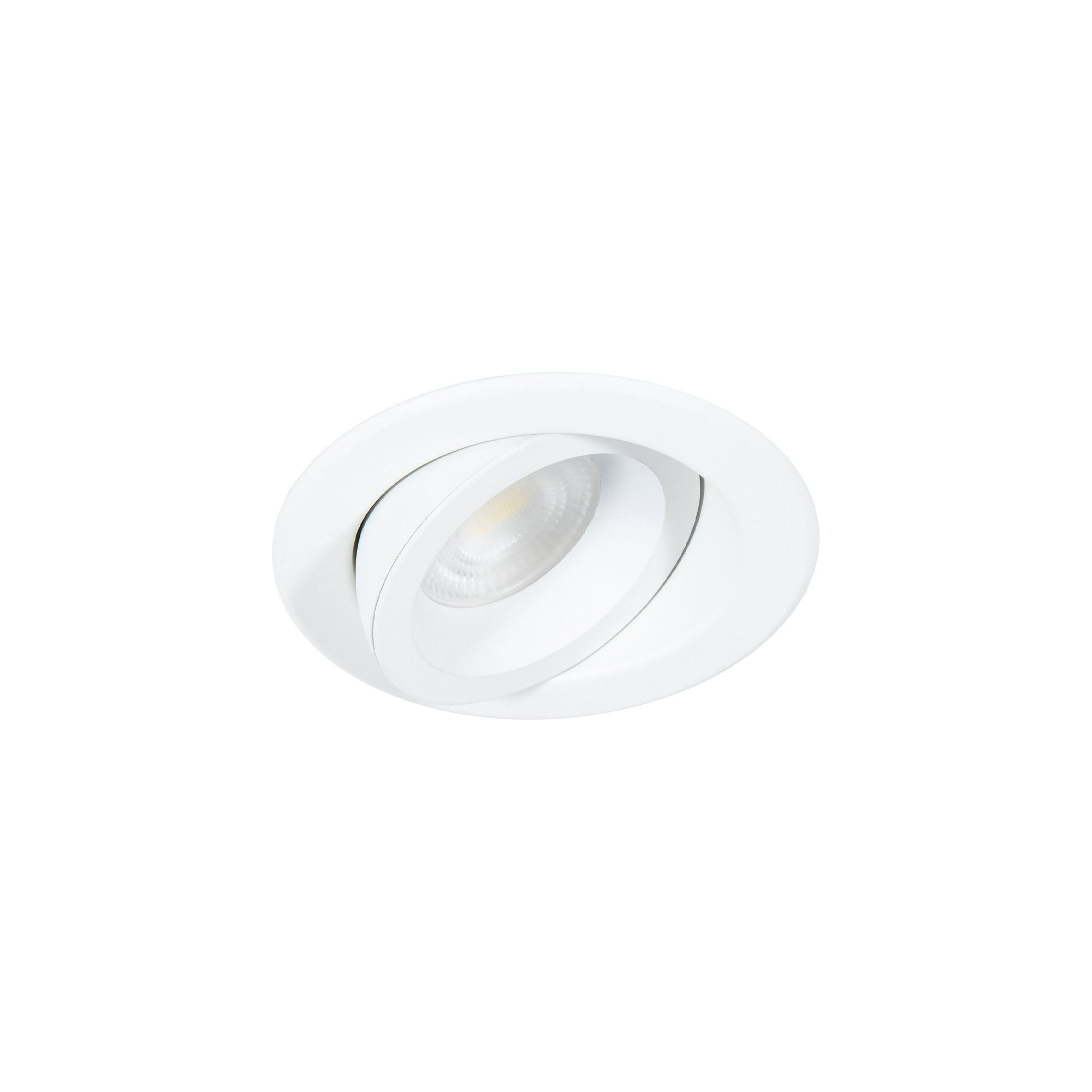

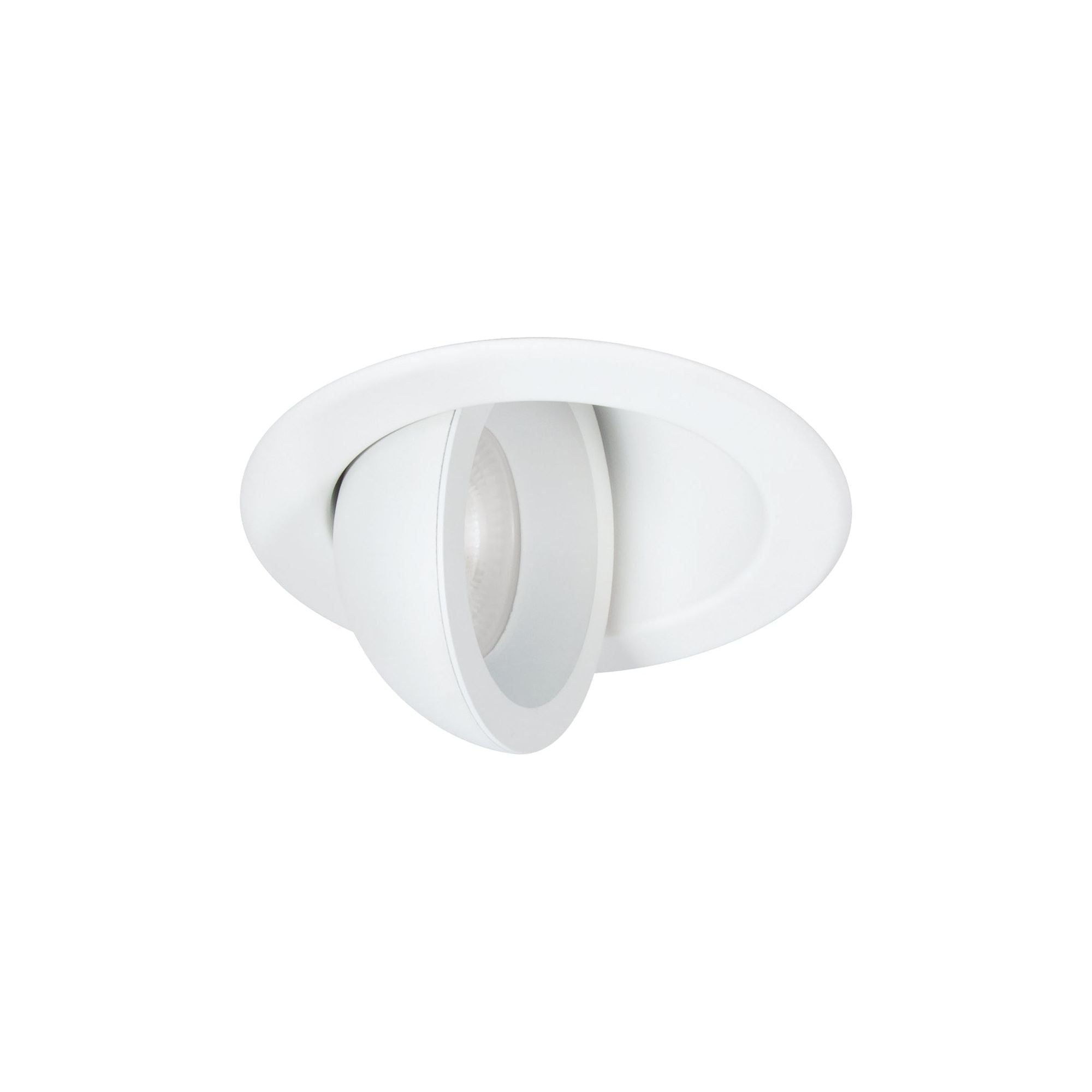

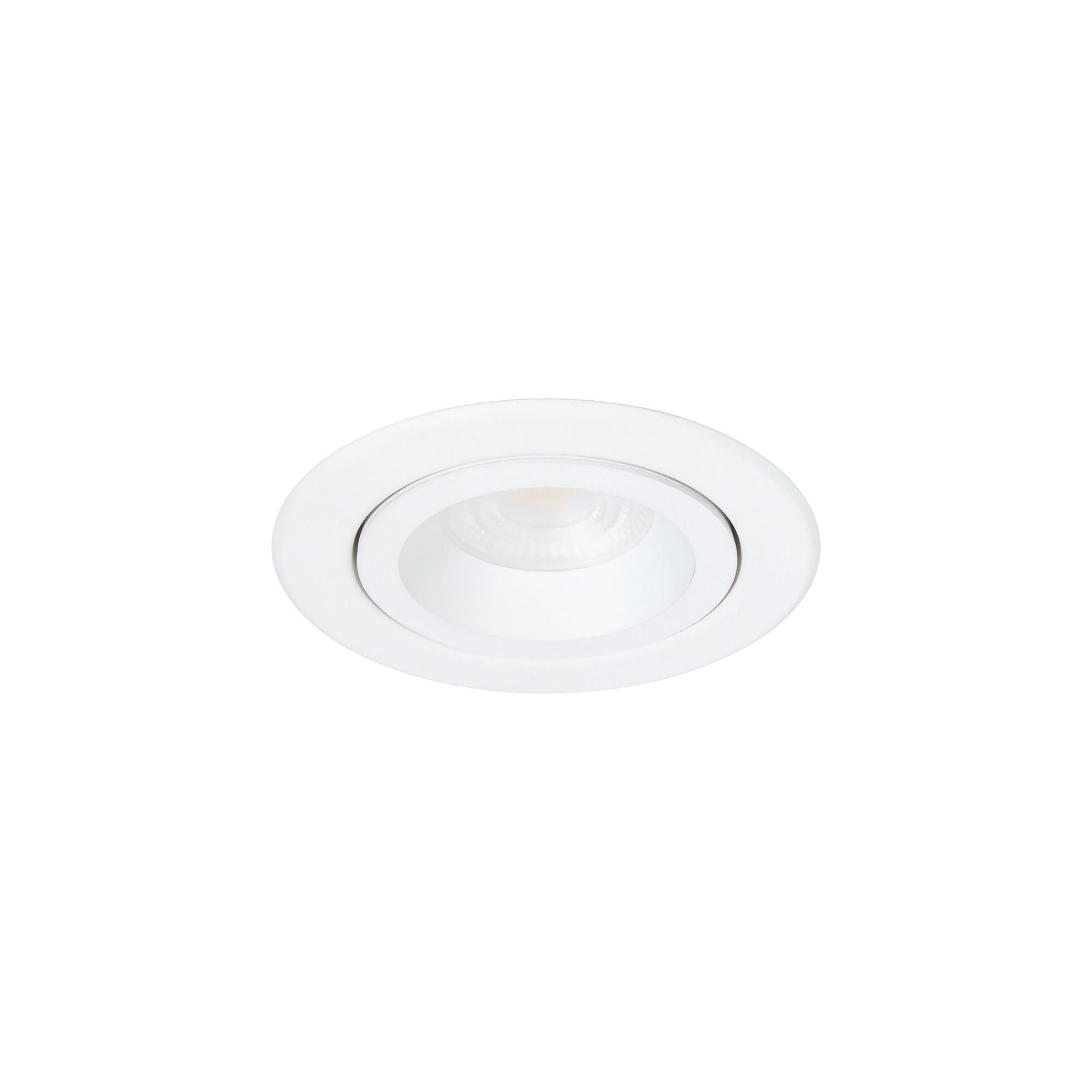

The wafer-thin Lotos R Recessed LED Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. The regressed luminaire cuts down on glare and is easier to look at from below. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos R is available as an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing.

The integrated high output and energy efficient Lotos R LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 4.5-inch plenum clearance.

  • This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). 6ft extension cable (Part # RER-6) is available to increase distance from driver to downlight.

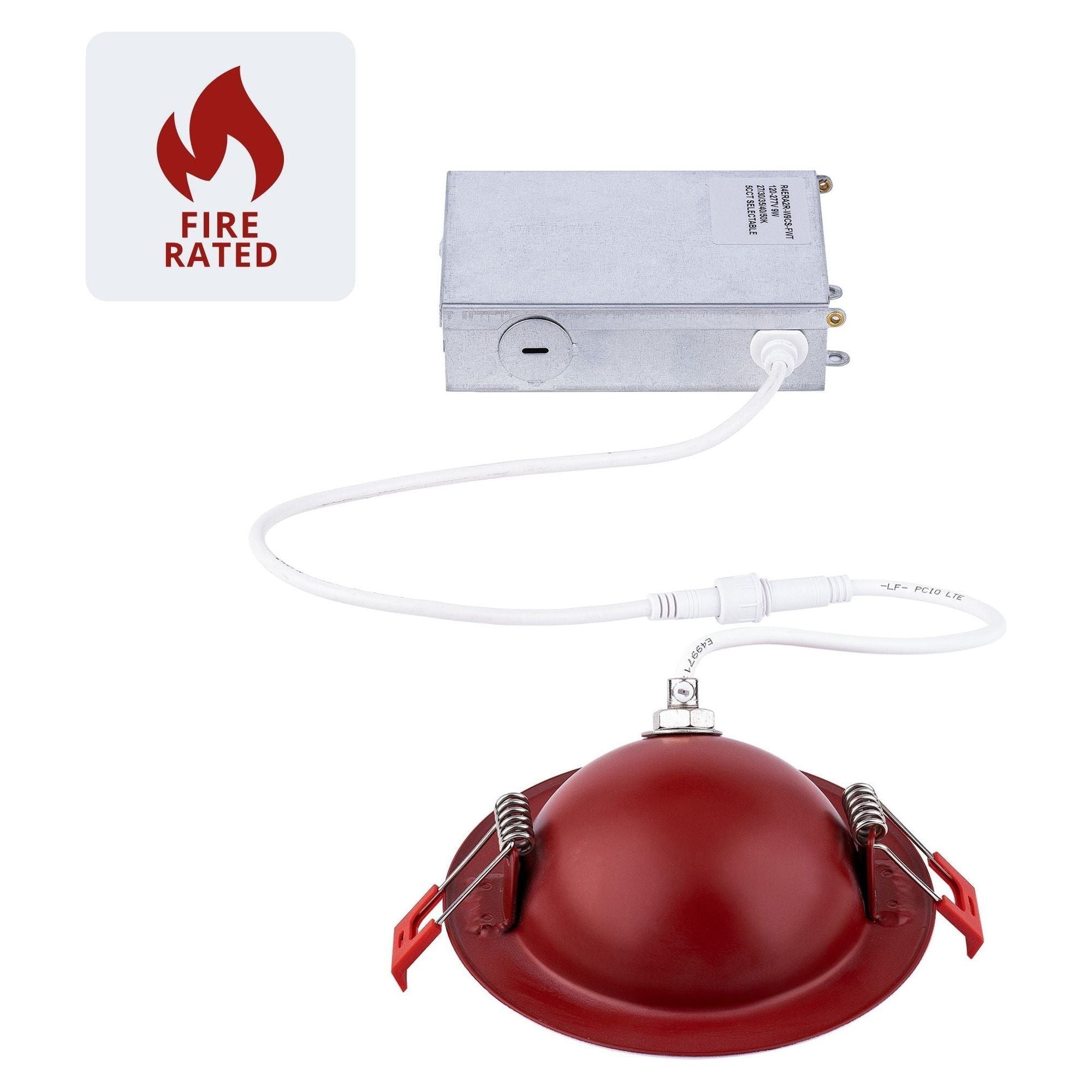

  • A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6in low voltage plug-and-play connector that connects to the downlight.
  • Smooth and continuous dimming that works with most standard LED dimmers. We recommend using an ELV or TRIAC dimmer.

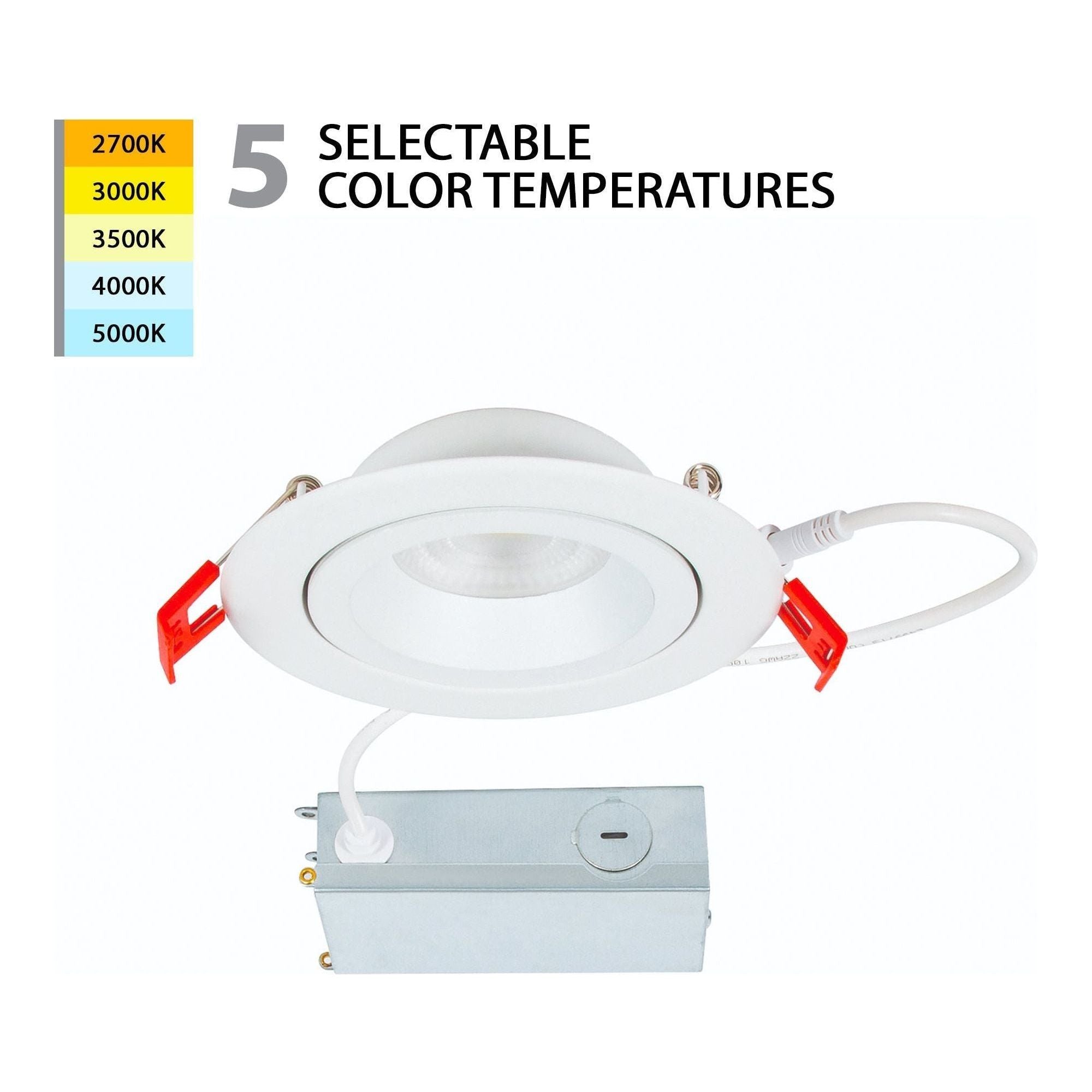

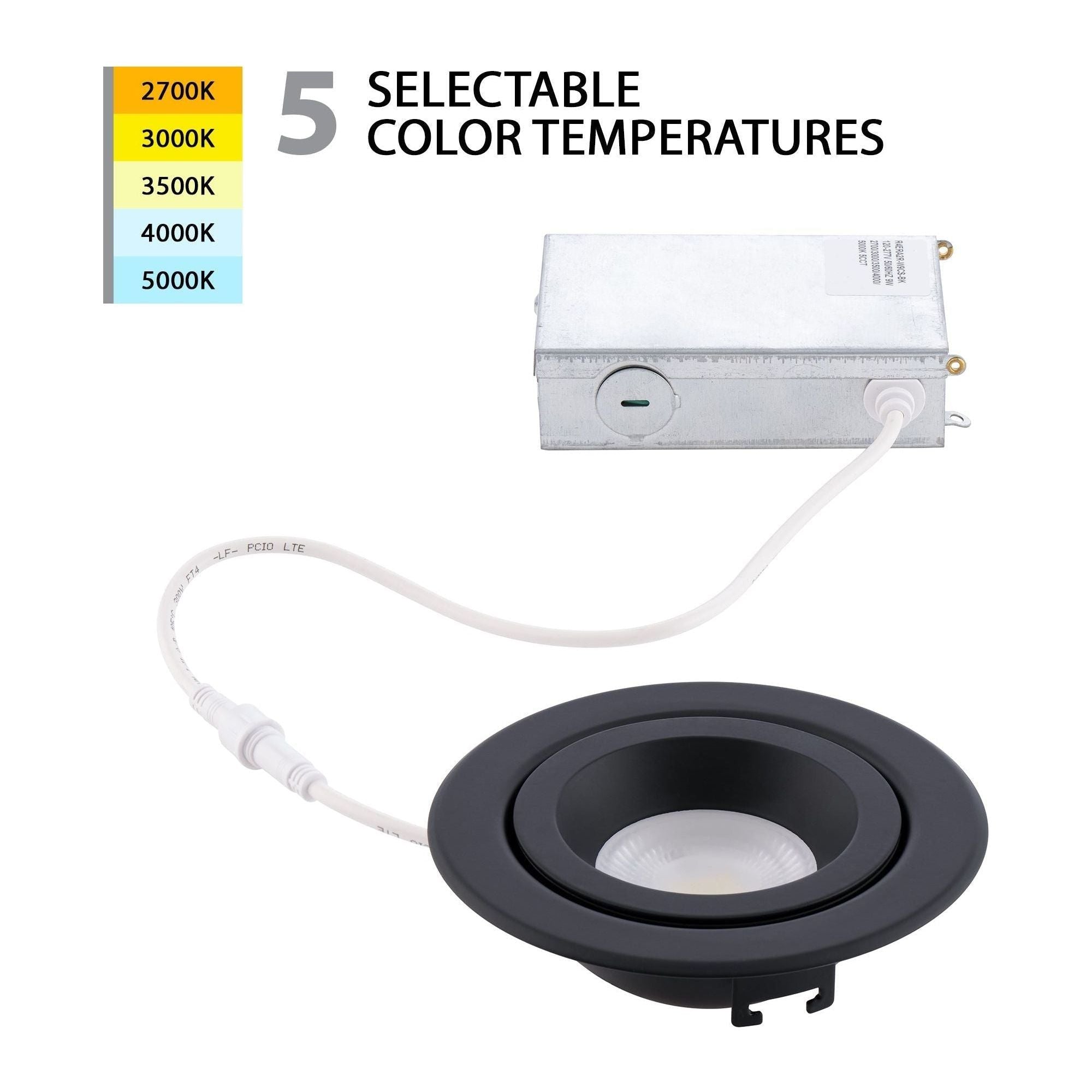

  • High Powered LED's up to 733 Lumens rated at LM70 for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
Shipping & Returns

This item ships from the US. Lights Canada covers all brokerage, duties and customs fees on items imported from outside of Canada. Looking for a specific delivery timeline? We encourage you to reach out prior to placing your order. Please note all items have different lead times. Please call or contact us if you have any queries about this product.

Product Specifications

Product Details

Product Type:Recessed Trims
Certification:ETL, cETL

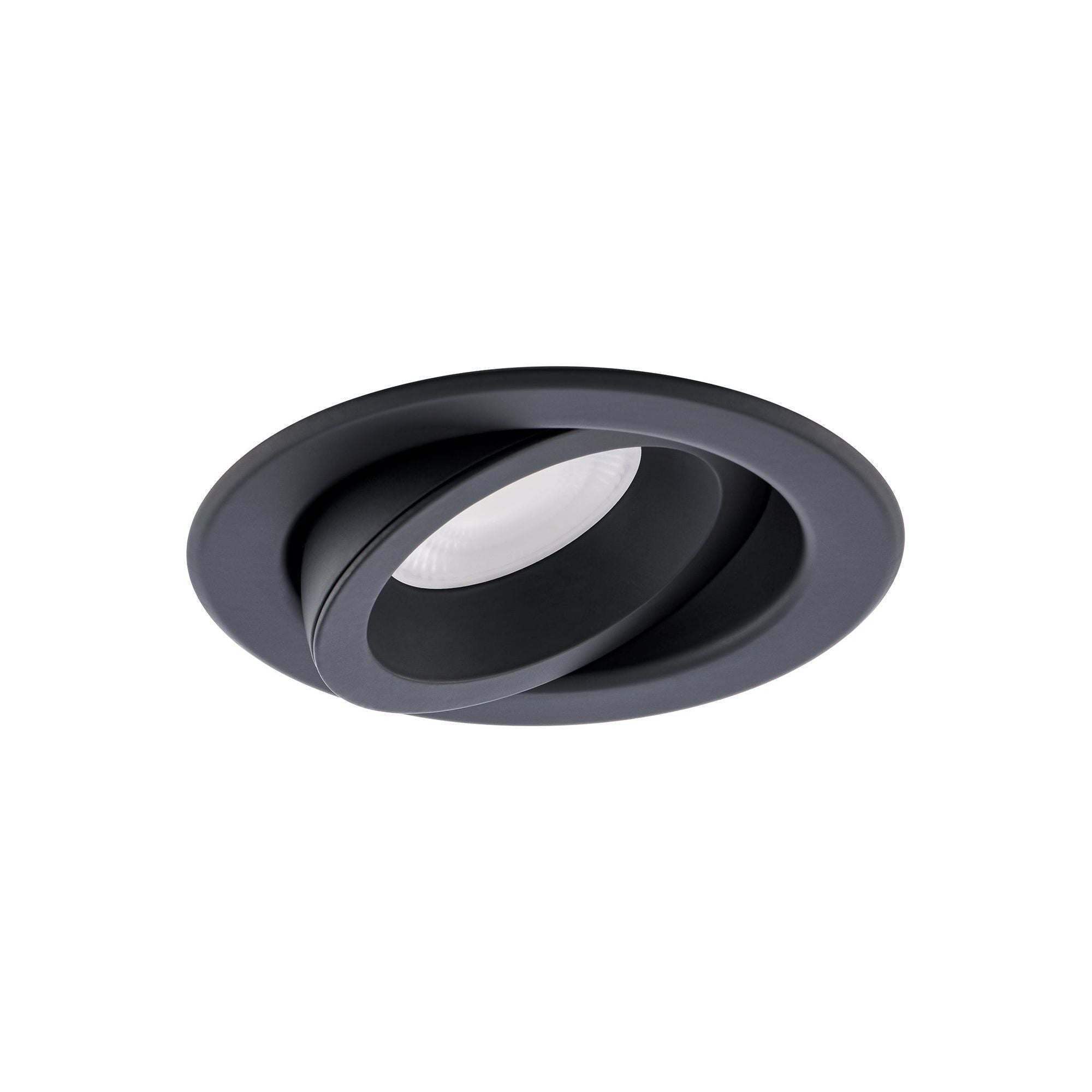

Finish:Black
Family:Lotos
Style:Utilitarian
Energy Star:Yes
ADA:Yes
Body Material:Steel
Shade Material:Acrylic
Shade Description:Frosted Acrylic Diffuser
Location Rating:Wet

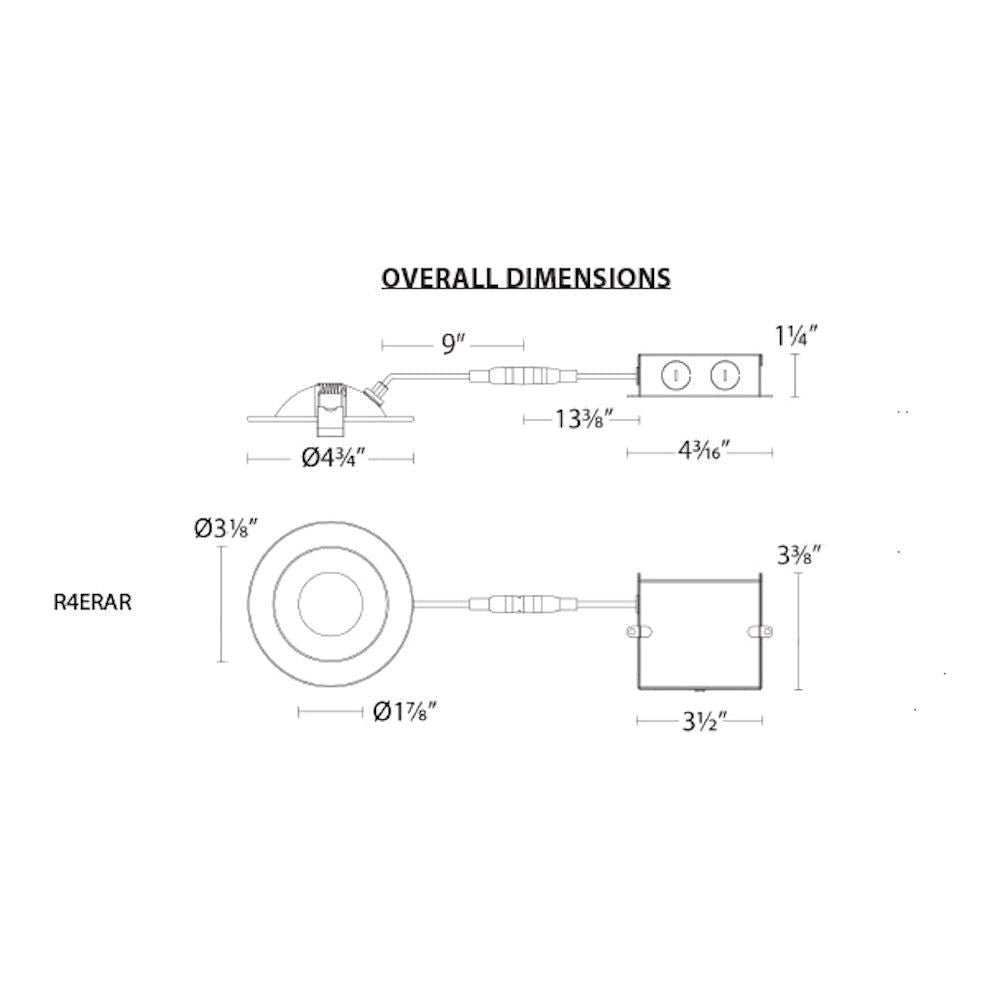

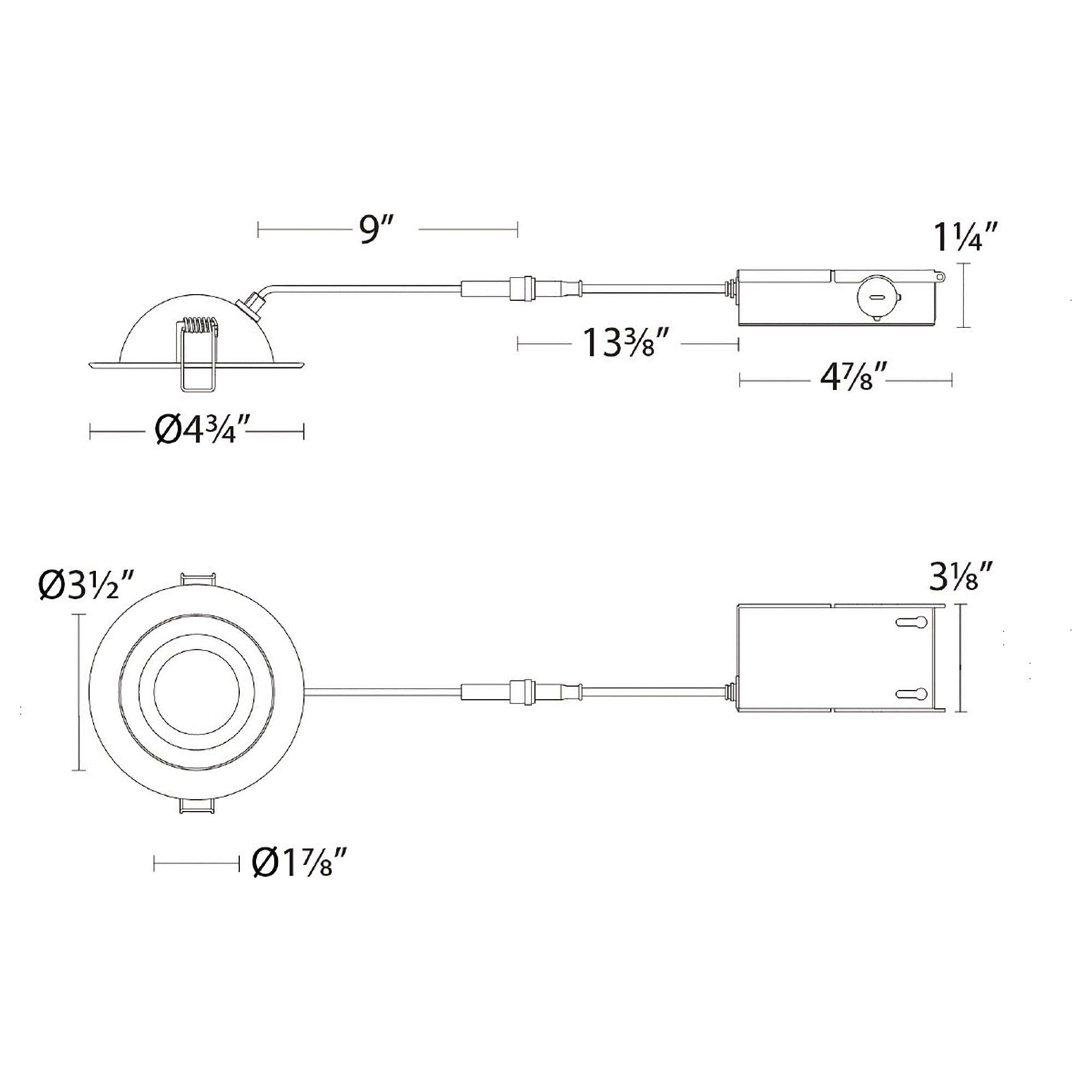

Dimensions (in inches and lbs)

Width:4.73
Length:4.73
Height:1.67
Weight:1.14

Lamping

Bulb Count:1
Bulb Included:Yes
Bulb Type:LED
Bulb Base:LED Module - Universal Driver
Bulb Wattage:9
Bulb Voltage:120-240-277
Color Temperature:2700K - 5000K
Lumens:740
CRI:90
Beam Spread:50 Degrees
Lifespan:50,000 hours
Dimmable:Yes

Warranty

Warranty:5 Years Functional, 2 Years Finish
Resources & Downloads

Lotos R 4" LED 5-CCT Round Adjustable Recessed Kit

Sale price C$61.97 Regular price C$68.85
Save 10%

Unlock Trade Pricing Learn More


Quick Specifications

Height: 1.67"

Width: 4.73"

More Specs
Finish: Black
SKU: R4ERA2R-W9CS-BK
  • In Stock Ships within 12 - 14 business days
