SKU R4ESAR-W9CS-WT

Lotos 4" LED 5-CCT Square Adjustable Recessed Kit

More By WAC Lighting

CAD $50.85

Unit price: per

Ships within 12 - 14 business days

When will this arrive?

In Stock

SKU R4ESAR-W9CS-WT

Lotos 4" LED 5-CCT Square Adjustable Recessed Kit

More By WAC Lighting

CAD $50.85

Unit price: per

Ships within 12 - 14 business days

When will this arrive?

In Stock

Trade Professional? Call 1.888.988.8635 or Chat with us for Trade Pricing

Questions about this product? Talk to a customer care specialist 1.888.988.8635

Free shipping and easy returns on all orders*. View our full shipping and return policy.

Specifications

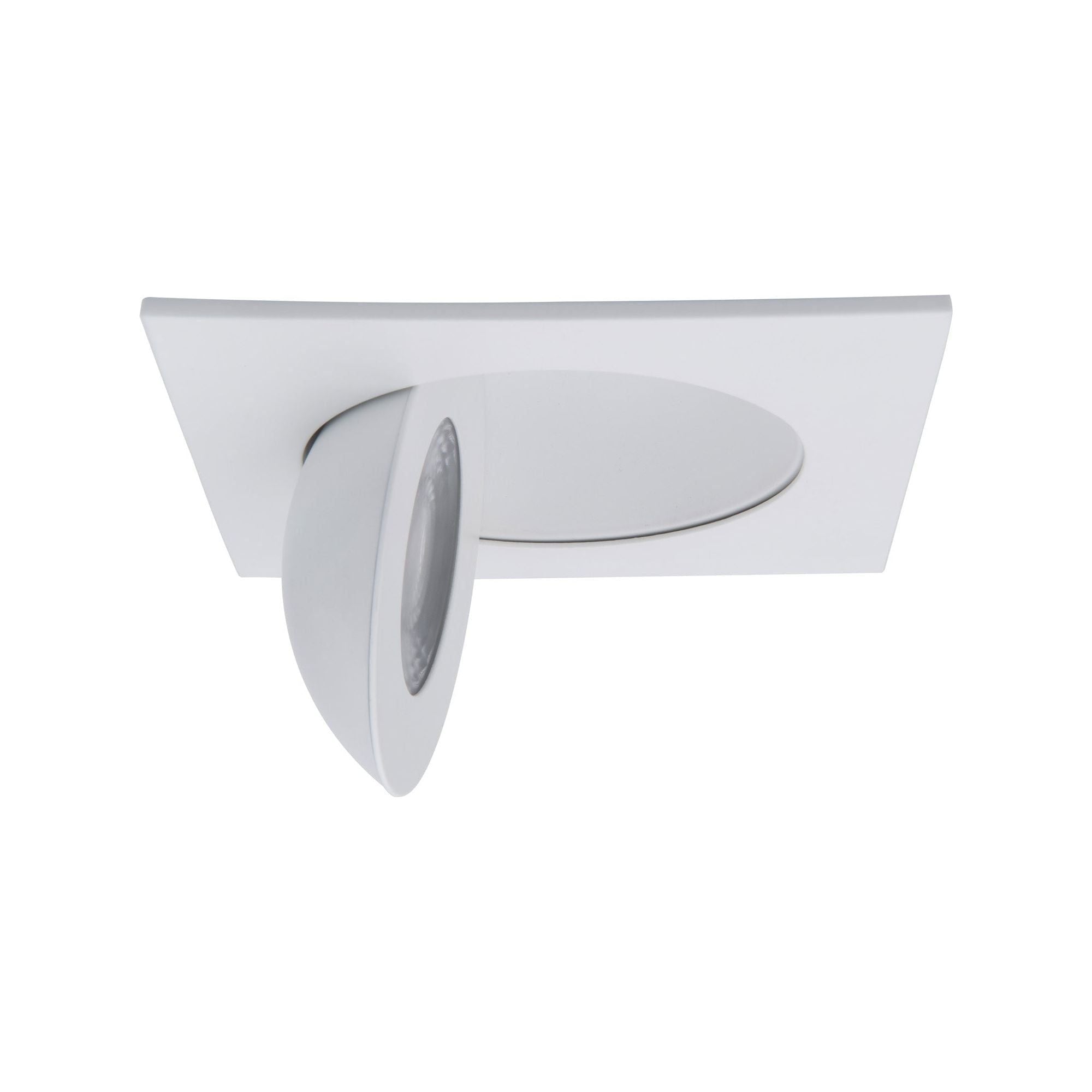

The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing.
The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations. Now with a fire rated version, -FWT.

Show More

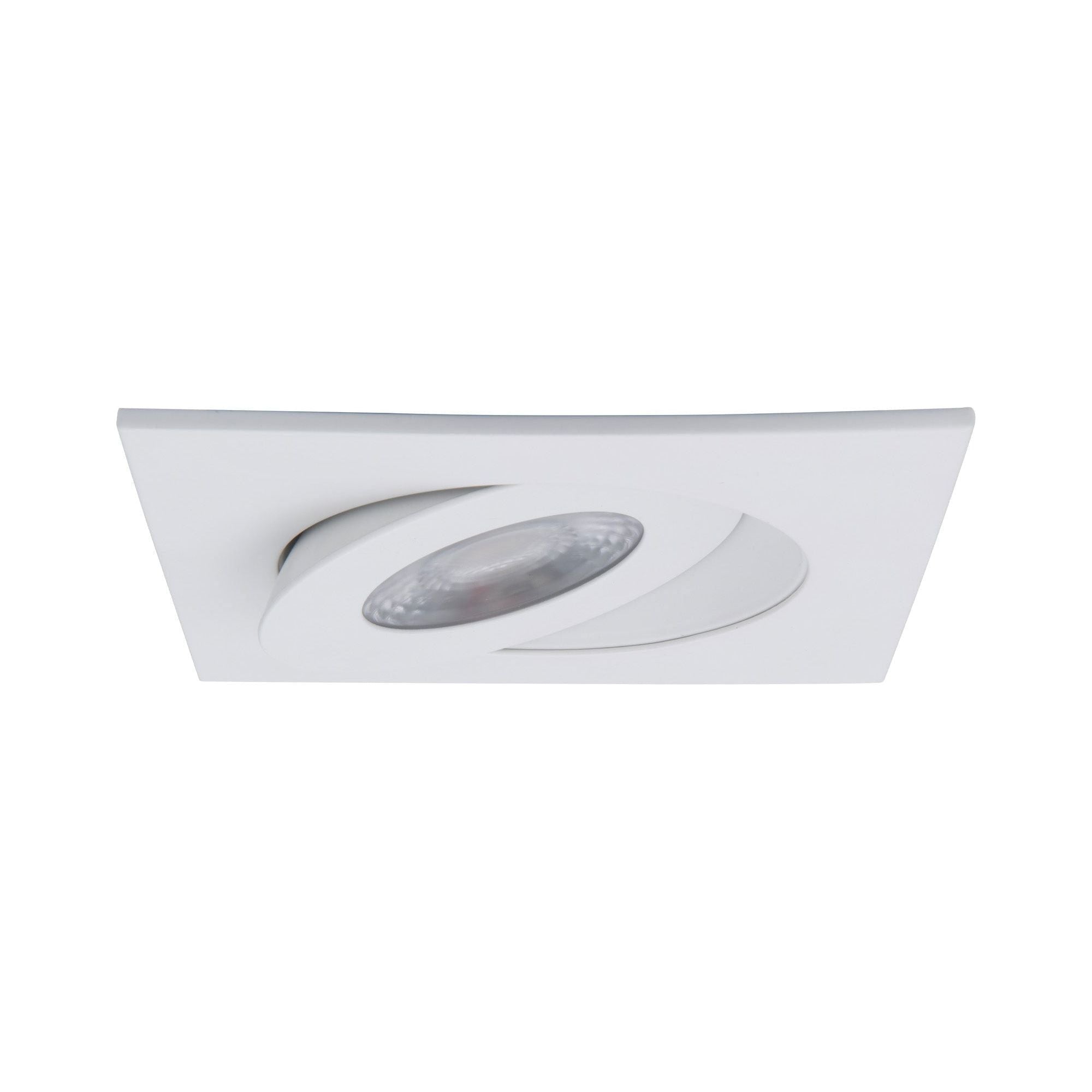

Lotos Adjustable is a complete LED recessed adjustable downlight kit with light engine and driver included. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.
This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). 6ft extension cable (Part # RER-6) is available to increase distance from driver to downlight.
A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6in low voltage plug-and-play connector that connects to the downlight.
Smooth and continuous dimming that works with most standard LED dimmers. We recommend using an electronic low voltage or TRIAC dimmer.

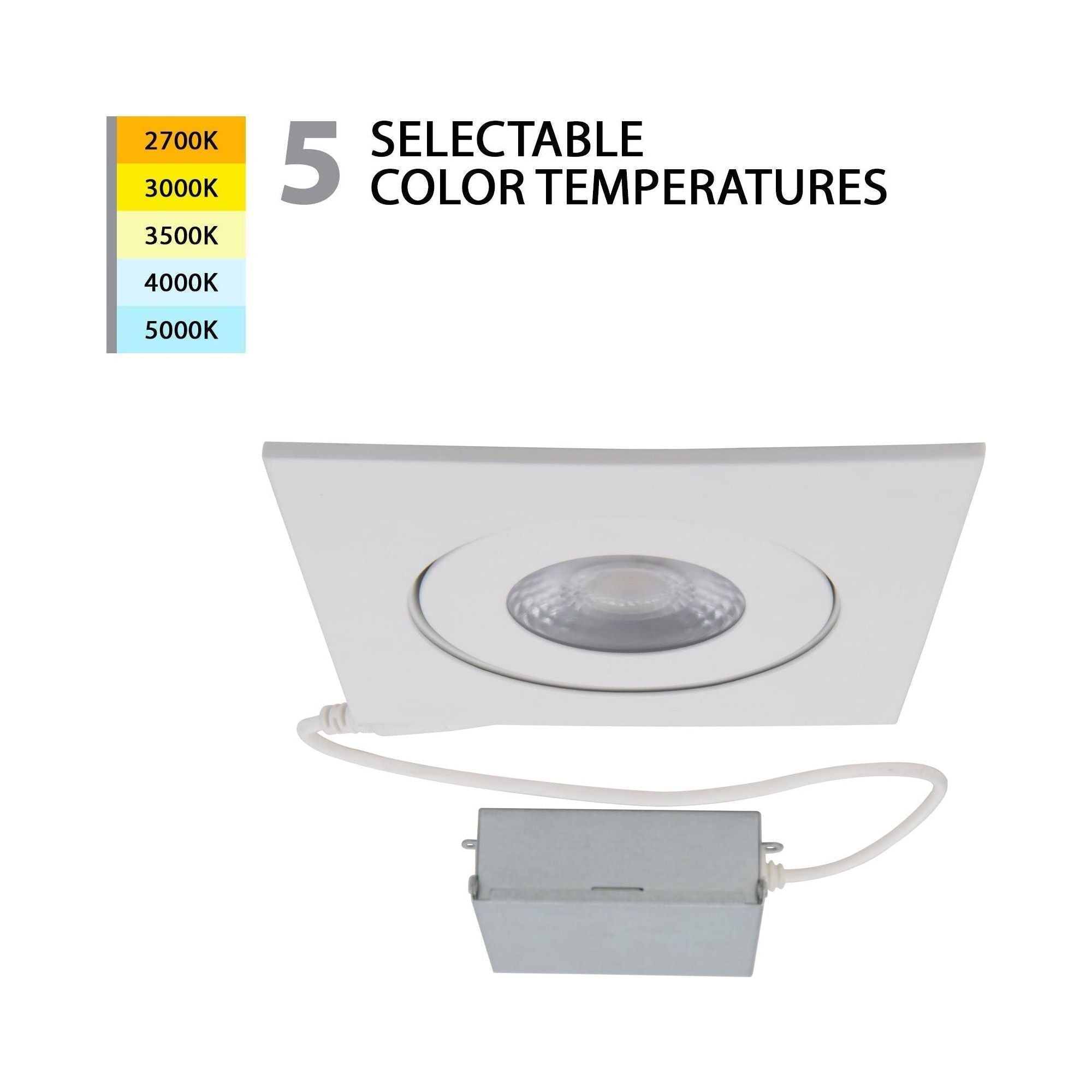

High Powered LED's up to 740 Lumens rated at LM70 for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.

Product Information

Product Type:	Recessed Trims
family:	Lotos
style:	Utilitarian
certification:	ETL, cETL
dark sky:	No
ada:	Yes
location rating:	Wet
Cutout:	4
Ceiling Thickness:	0.5 - 1.5
Trim Size:	4.75
material shade:	Acrylic
shade description:	Frosted Acrylic Diffuser
Finish:	White
Warranty:	5 Years Functional, 2 Years Finish

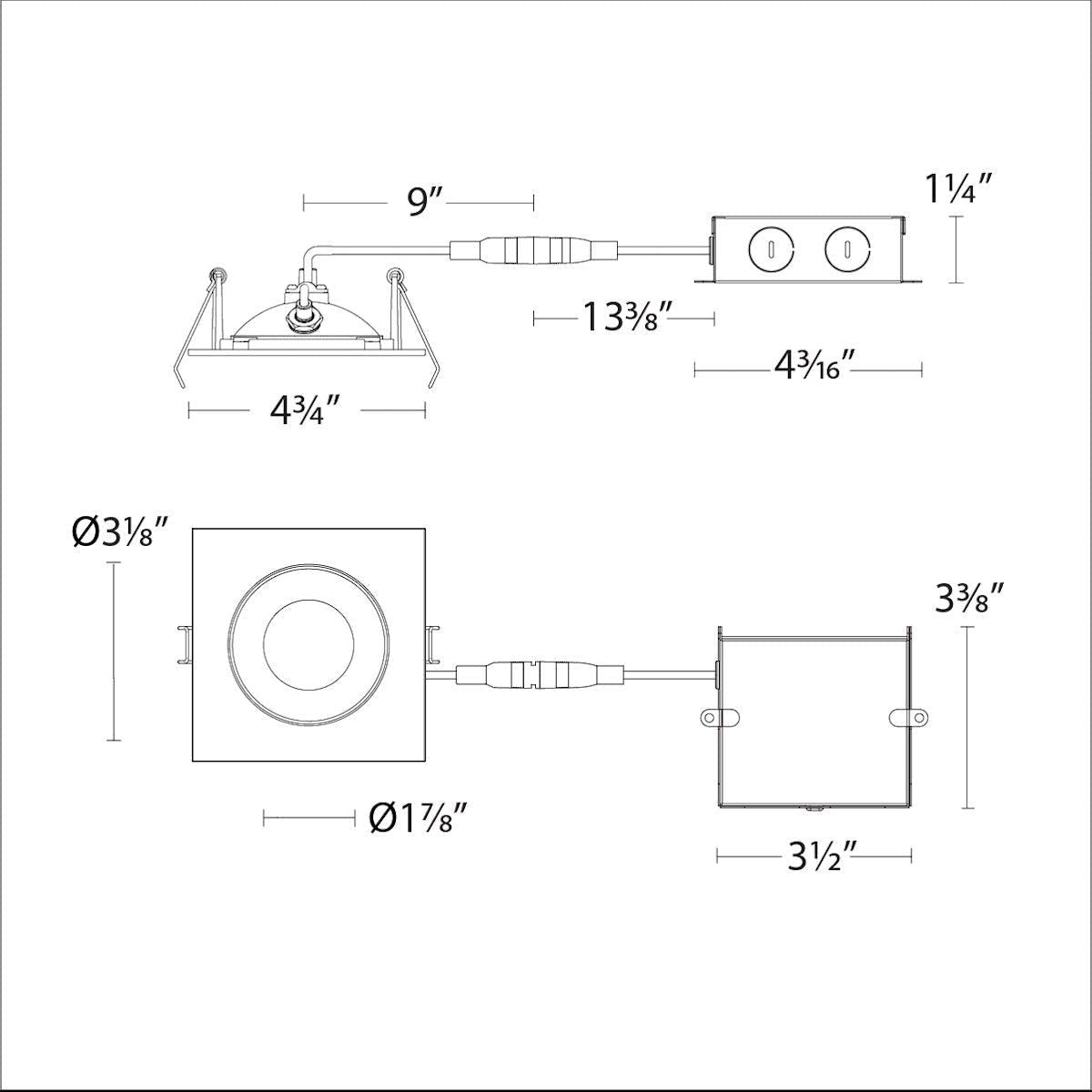

Dimensions (in inches)

weight:	0.66
height:	1.18
width:	4.73
length:	4.73

Lamping

Bulb count:	1
dimmable:	Yes
energy star:	Yes
Bulb Type:	LED
Bulb Base:	LED Module - Universal Driver
Bulb Wattage:	9
Color Temperature:	2700K - 5000K
Lumens:	740
CRI:	90
Bulb Voltage:	120-240-277
Beam Spread:	45 Degrees
Life Span:	50,000 hours
Bulb Included:	Yes
