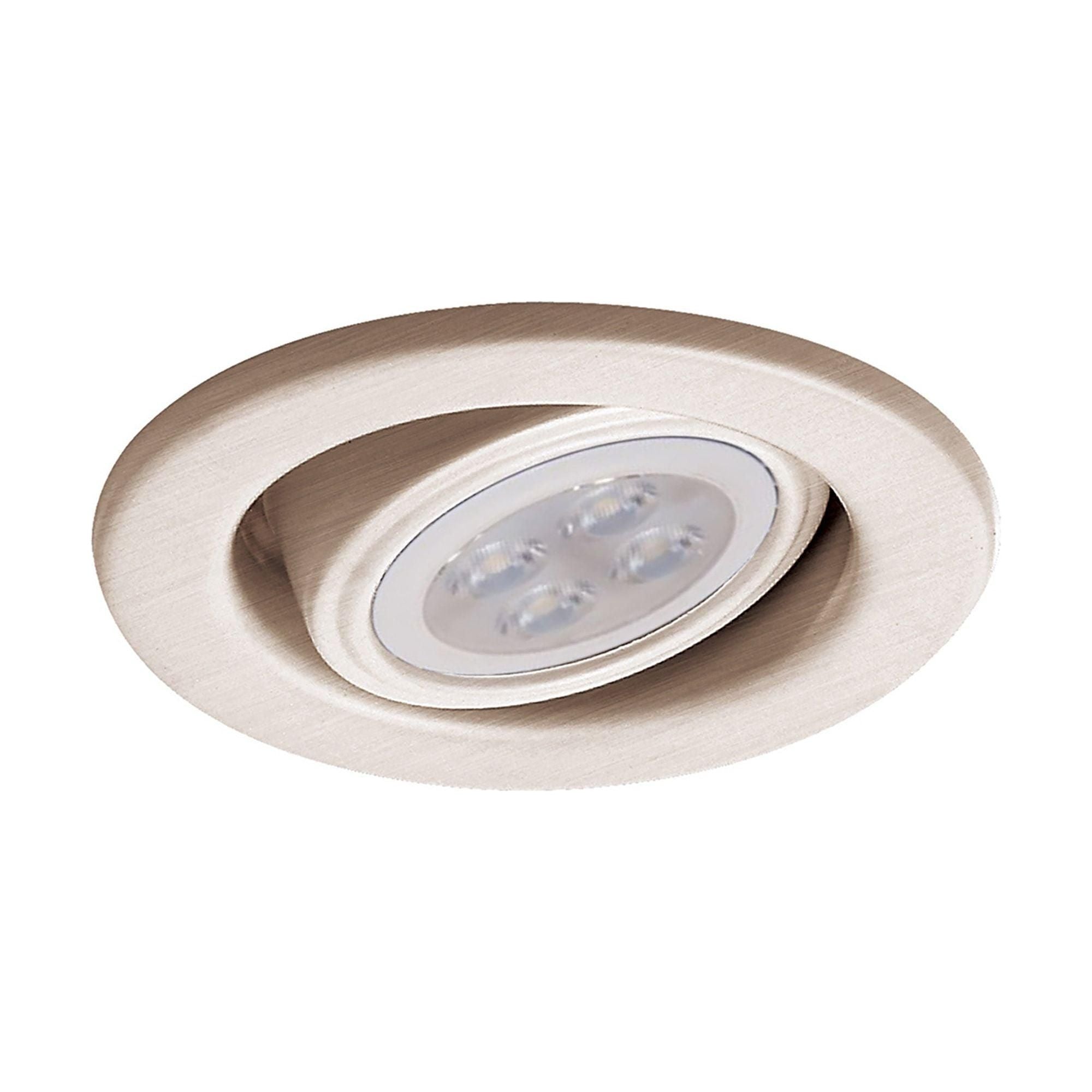

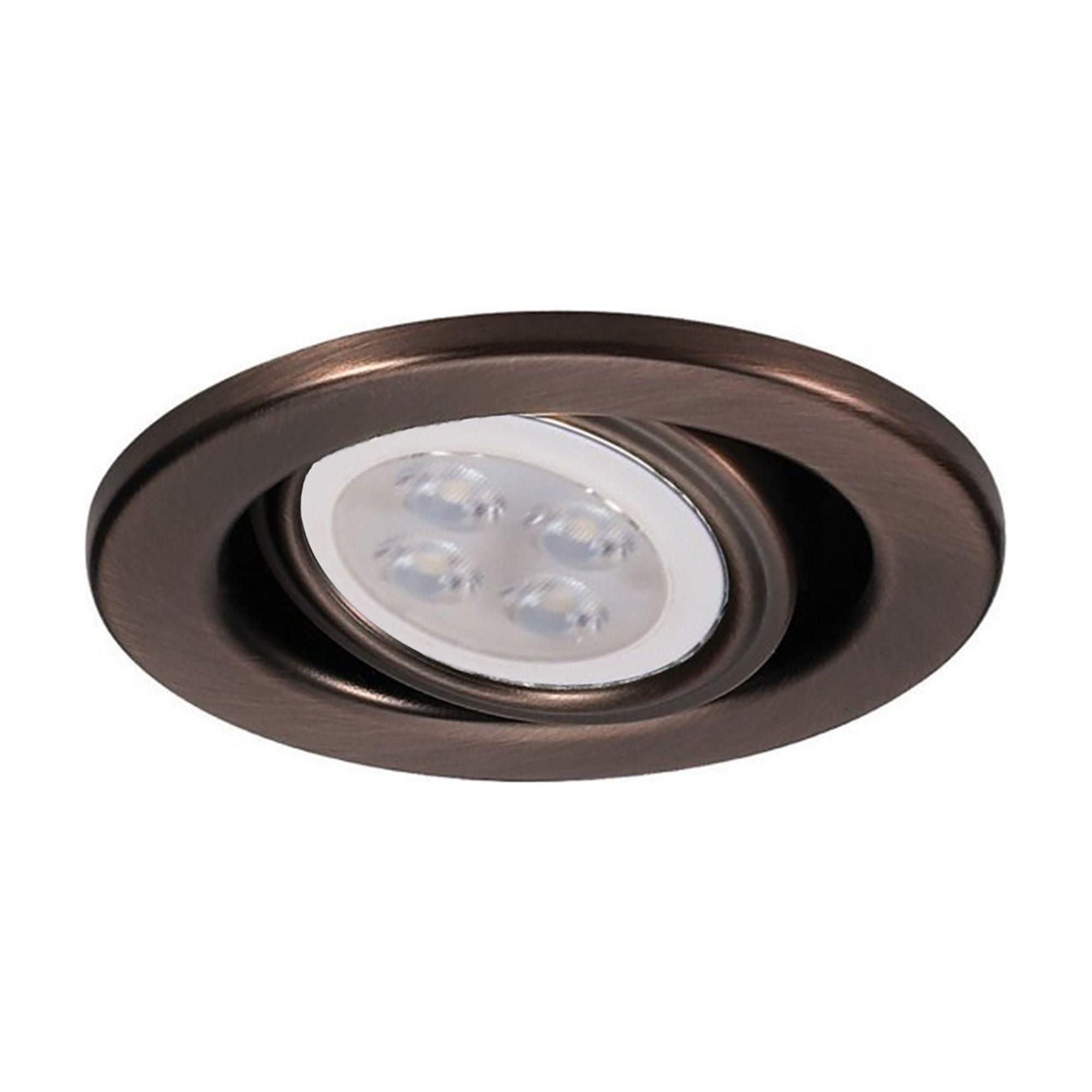

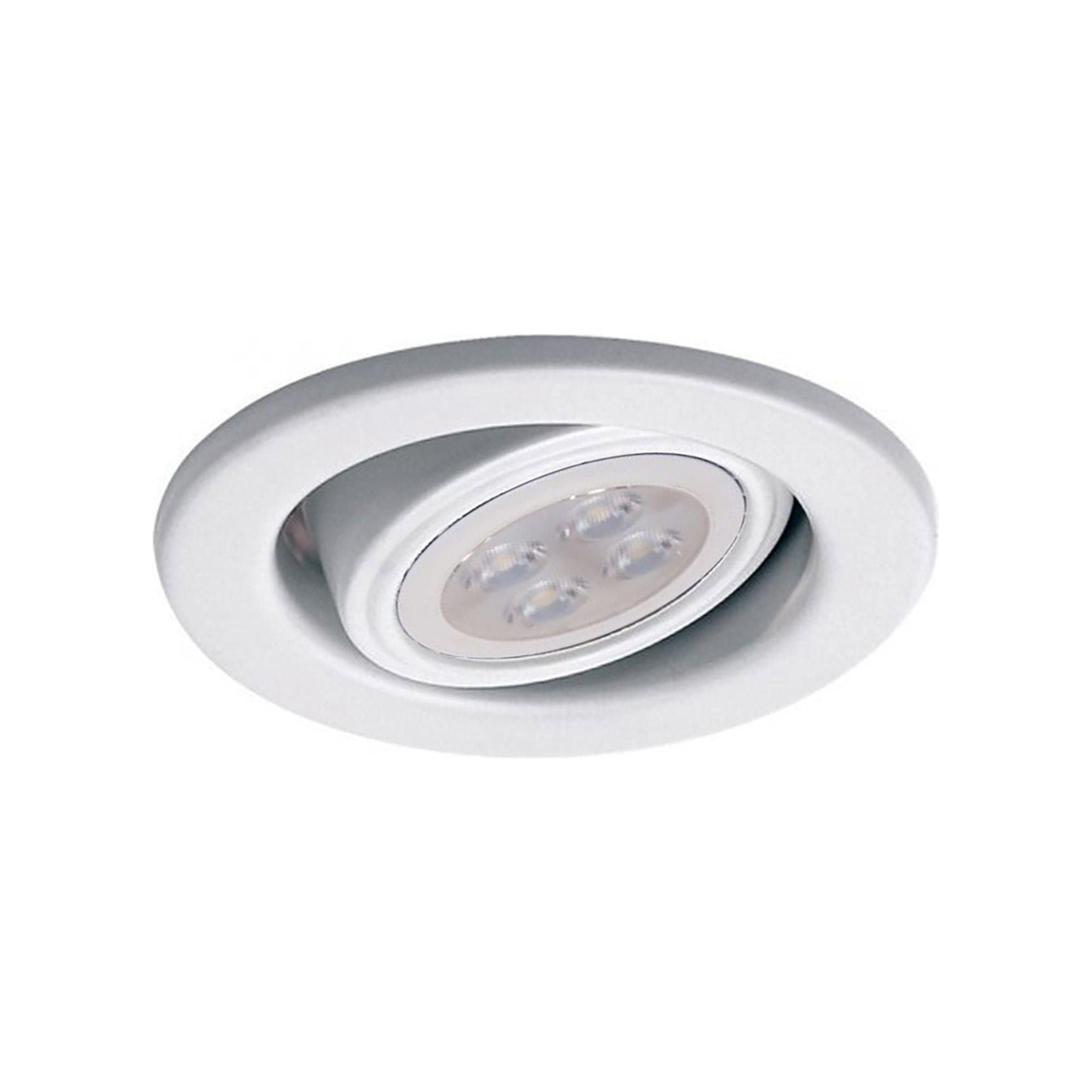

    WAC Lighting - 2.5" Adjustable Gimbal Trim with LED Bulb - Lights Canada

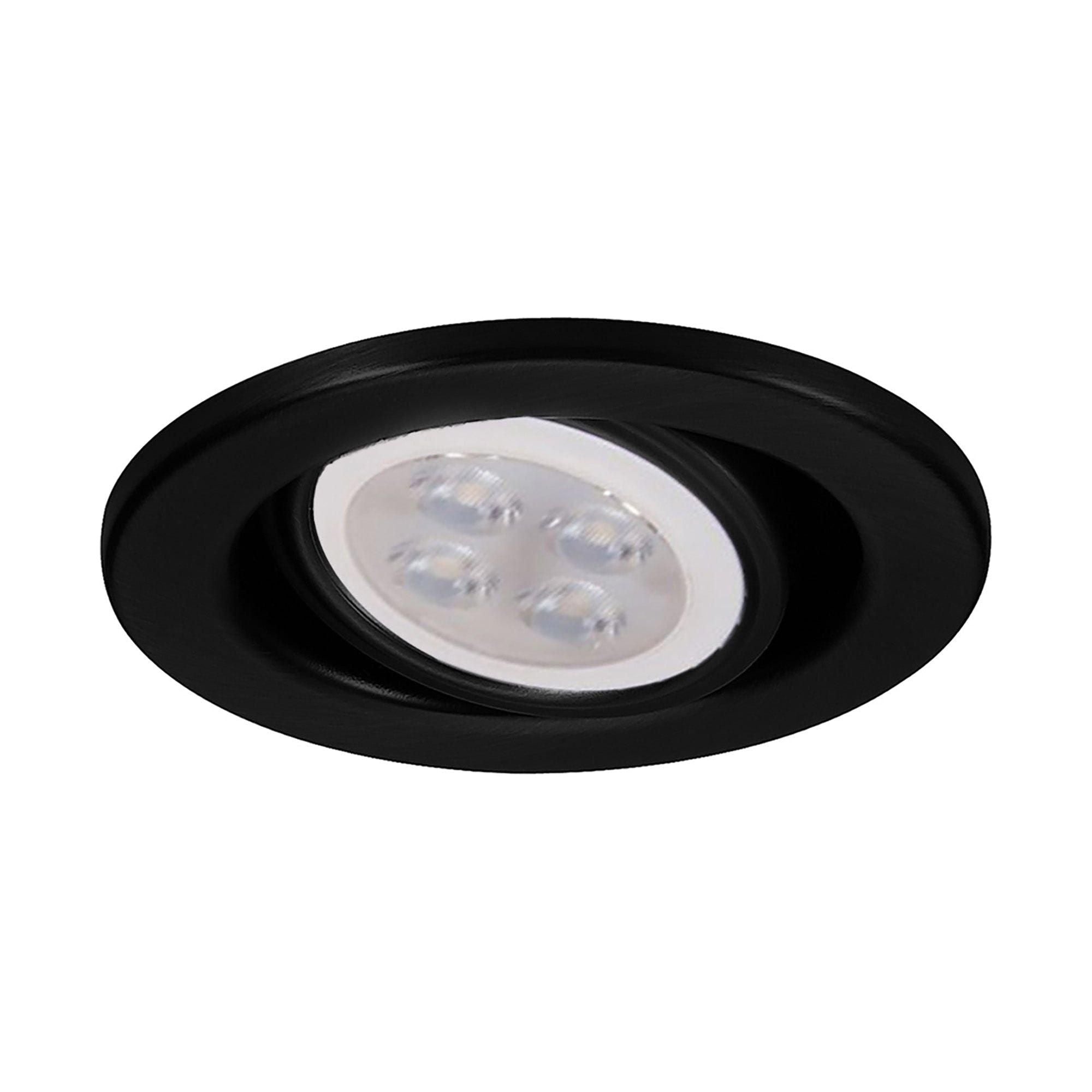

    2.5" Adjustable Gimbal Trim with LED Bulb

    by WAC Lighting

    C$101.85

    Sign up and save!

    Unlock Trade Pricing Learn More

    Add to Favourites

    SKU HR-837LED-BK

    Ships within 12 - 14 business days

    In Stock

    Questions about this product? Talk to a customer care specialist 1.888.988.8635

    Contact us and ask about our PRICE MATCH GUARANTEE!

    Description

    Superb performance delivered in a small package. The 2.5 inch Low Voltage Recessed Downlight series offers smooth and crisp light for under cabinet and tight recessed spaces where miniature apertures are desired. For use with HR-800 series low voltage housings. Accepts MR16 LED or incandescent lamp 50W max, housing and lamp are sold separately.

    • Accommodates most LED MR16 or Halogen MR16 lamps. Retention clips secure lens firmly to lamp. 1W minimum load transformers. Clear lens included, see opposite page for replaceable lens options.
    • Simple to install, compatible with any WAC HR-800 low voltage housing or an existing 3in Recessed retrofit.
    • Includes retention clips to secure firmly into housing. Construction: Durable Die-cast aluminum construction. Allows for 25 degree adjustment in either direction from vertical.
    • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.

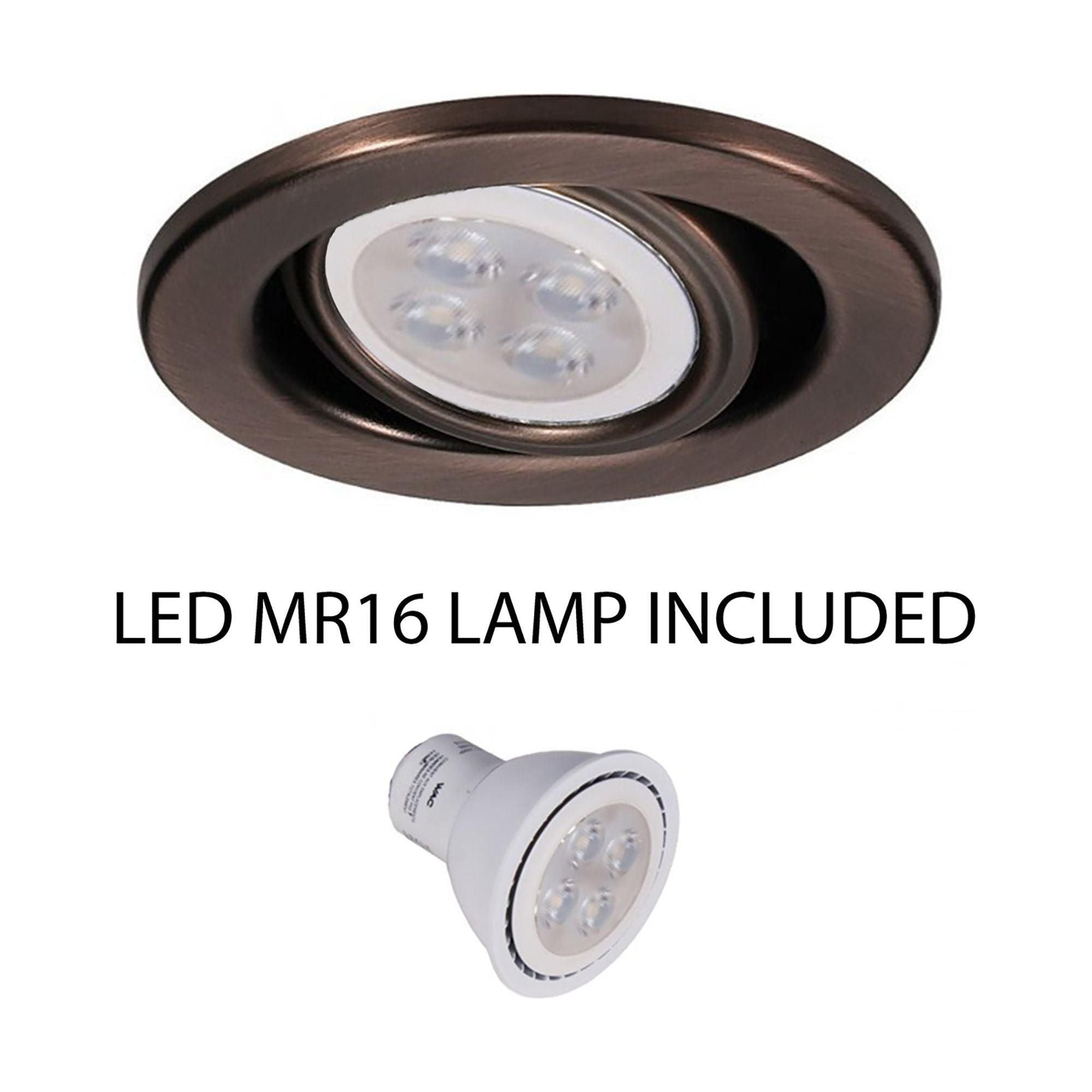

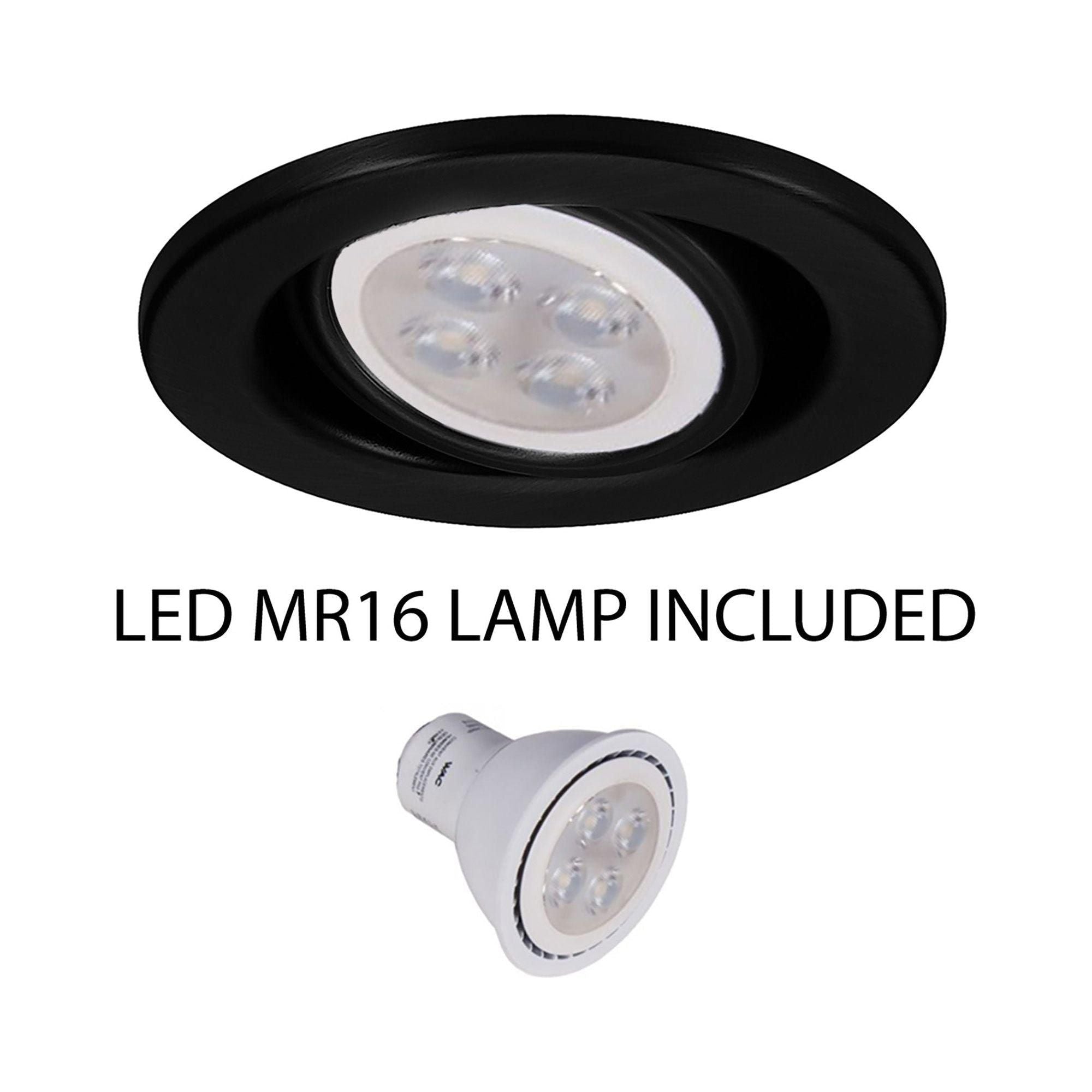

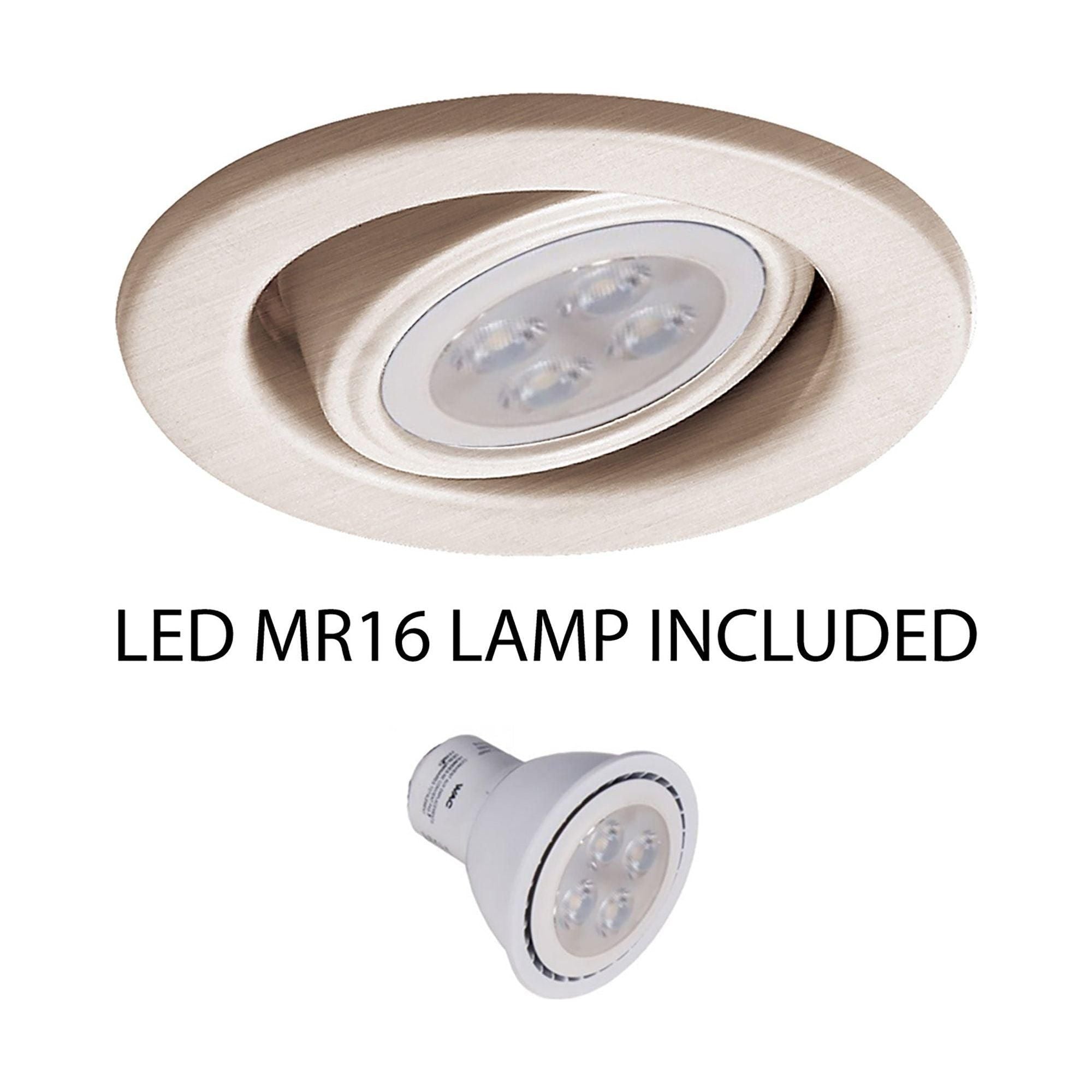

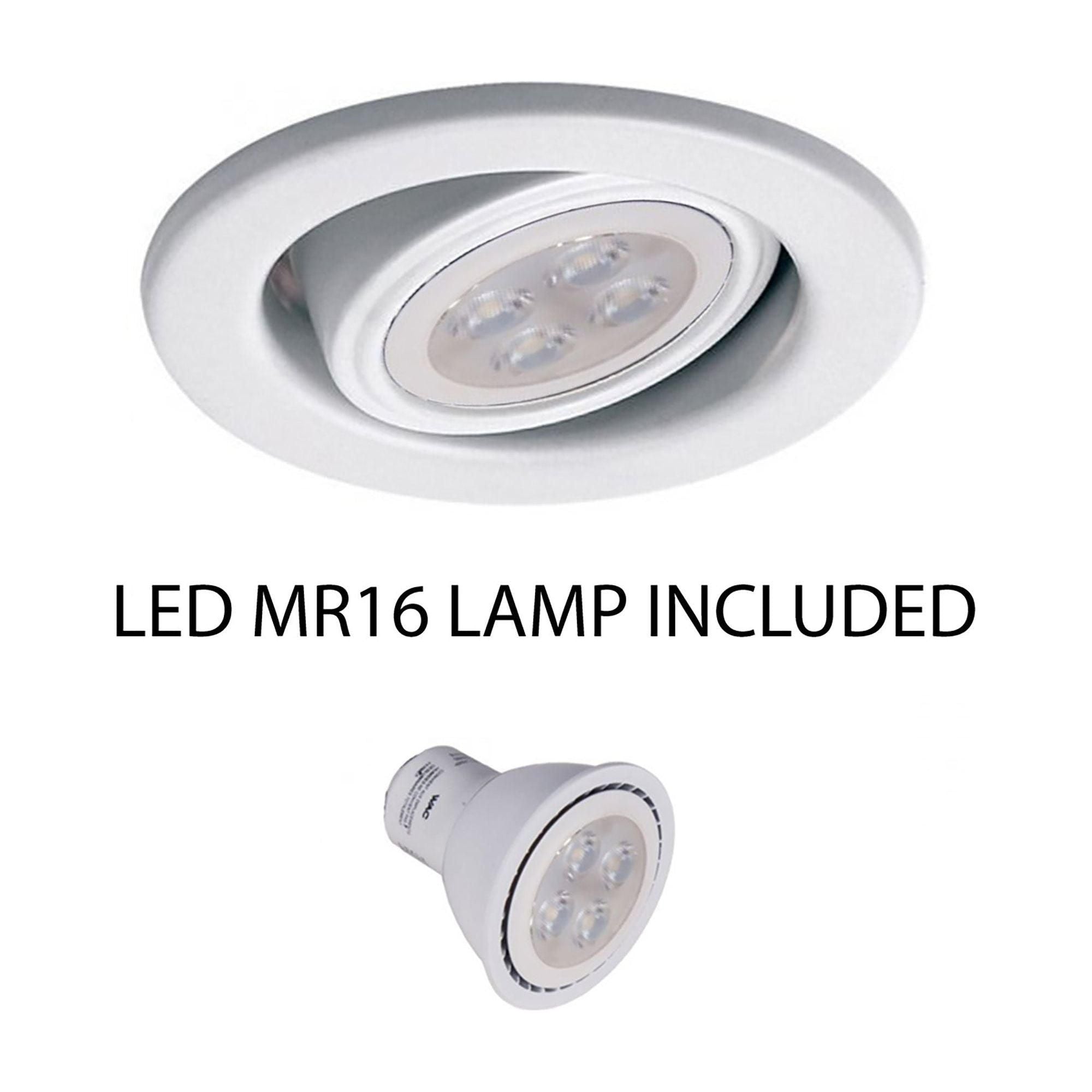

    • High Powered Replaceable LED MR16 Lamp included CRI: 90, Rated Hours: 25000, Color Temp: 3000K.

    Specifications

    Product Details

    Product Type: Recessed Trims
    Certification: UL, cUL
    Finish: Black
    Family: WAC
    style: Utilitarian
    ada: Yes
    location rating: Damp

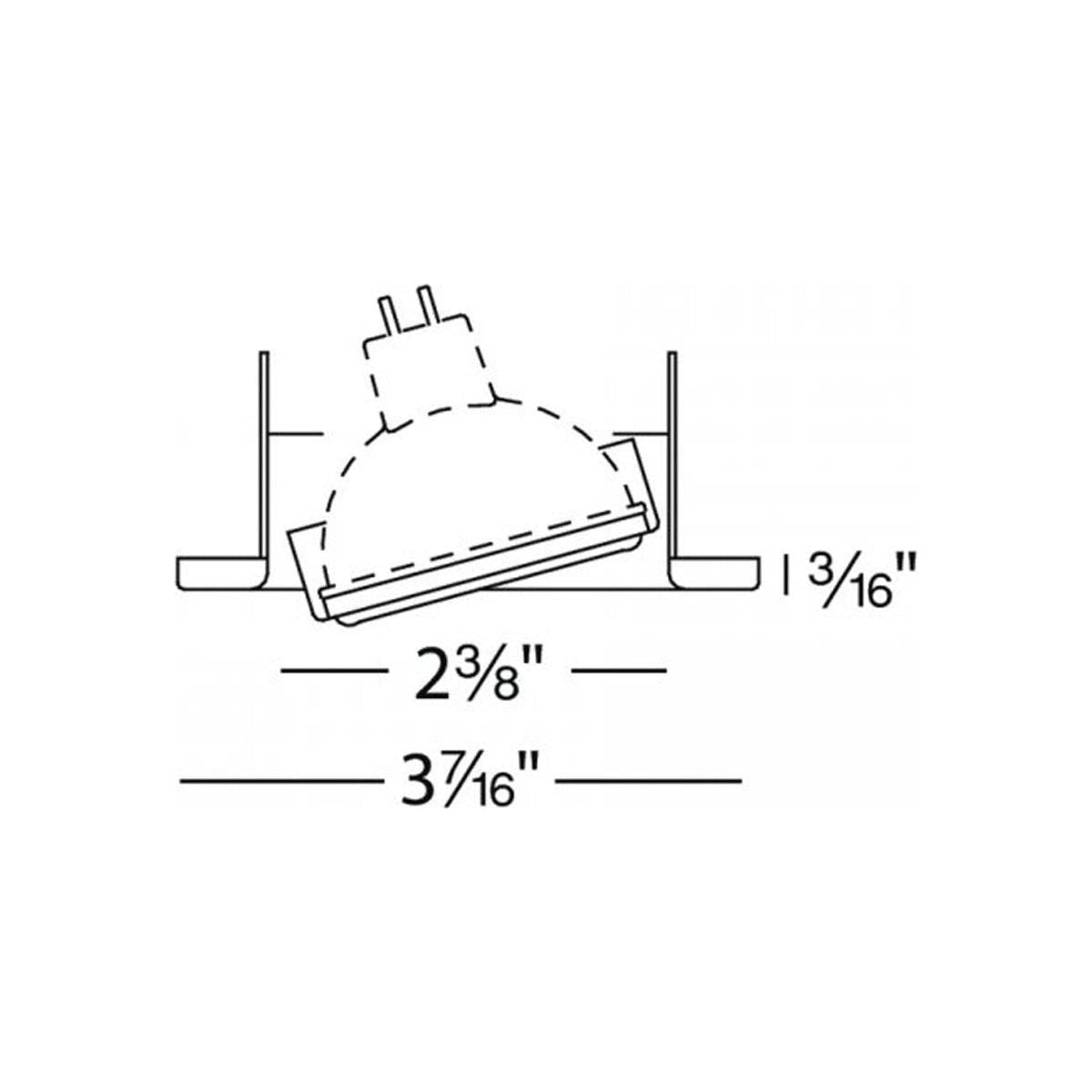

    Dimensions (in inches and lbs)

    weight: 0.26
    height: 0.19
    width: 3.44
    length: 3.44
    backplate: Cutout: 3; Trim Size: 3.58; Aperture: 2.63

    Lamping

    Bulb count:1
    dimmable:ELV
    Bulb Type:LED
    Bulb Base:GY5.3 - MR16
    Bulb Wattage:8
    Color Temperature:3000K
    Lumens:450
    CRI:90
    Bulb Voltage:12
    Beam Spread:40
    Bulb Included:Yes

    Resources & Downloads

    Specification Sheet
    Installation Instructions
